Push Result Verifier node

The Push Result Verifier node validates the user’s response to a previously sent push notification message.

Availability

Product	Available?
PingOne Advanced Identity Cloud	Yes
PingAM (self-managed)	Yes
Ping Identity Platform (self-managed)	Yes

Product

Available?

PingOne Advanced Identity Cloud

Yes

PingAM (self-managed)

Yes

Ping Identity Platform (self-managed)

Yes

Authenticators

The push-related nodes integrate with the ForgeRock Authenticator app for Android and iOS.

Third-party authenticator apps aren’t compatible with the push notification functionality.

Inputs

This node requires the realm and username properties in the incoming node state.

Implement a Username Collector node (standalone AM) or Platform Username node (Advanced Identity Cloud and Ping Identity Platform deployments) earlier in the journey.
This node also requires the pushMessageId in the incoming state, which is a unique ID to identify the push notification request.

Implement a Push Sender node earlier in the journey.

Dependencies

You must configure the Push Notification service for the realm to use this node. Optionally, also configure the ForgeRock Authenticator (Push) service.

Find more information in the corresponding documentation for:

Find information on provisioning the credentials used by the service in How To Configure Service Credentials (Push Auth, Docker) in Backstage.

Configuration

This node has no configurable properties.

Outputs

This node doesn’t change the shared state.

Outcomes

Success: The user approved the push notification.
Failure: The user rejected the push notification.
Expired: A response wasn’t received from the user’s device within the time specified in the Push Sender node.
Waiting: A response hasn’t been received yet.

Errors

The node can log the following errors:

Unable to find push message ID

The node failed to read the pushMessageId from the shared state and can’t verify the user’s response. Make sure you have implemented a Push Sender node earlier in the journey.

Examples

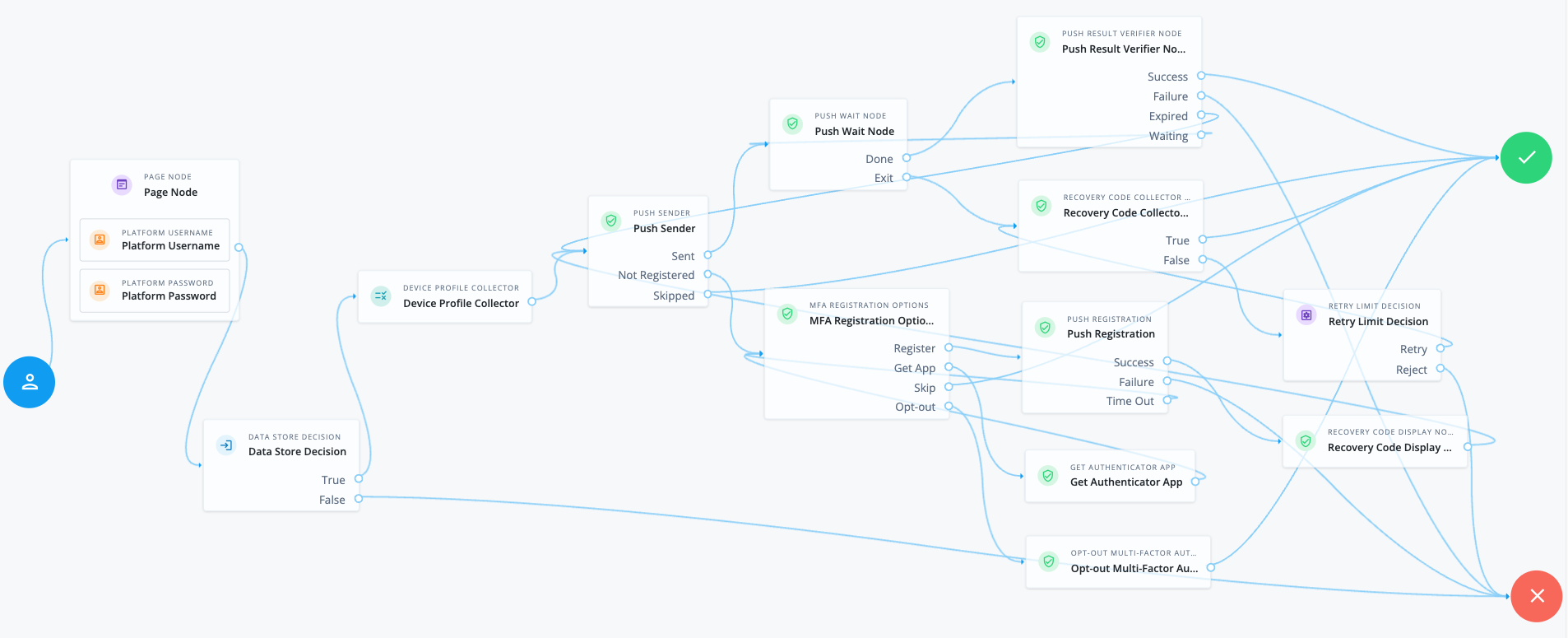

The following example shows one possible implementation of multi-factor push authentication, which uses this node:

Node connections

List of node connections
Source node	Outcome path	Target node
Page Node containing nodes to collect credentials. For standalone AM deployments, implement a Username Collector node and a Password Collector node. For Advanced Identity Cloud and Ping Identity Platform deployments, implement a Platform Username node and a Platform Password node.	→	Data Store Decision
Data Store Decision	True	Device Profile Collector
Data Store Decision	False	Failure
Device Profile Collector	→	Push Sender
Push Sender	Sent	Push Wait
	Not Registered	MFA Registration Options
	Skipped	Success
Push Wait	Done	Push Result Verifier
Push Wait	Exit	Recovery Code Collector Decision
Push Result Verifier	Success	Success
	Failure	Failure
	Expired	Push Sender
	Waiting	Push Wait
MFA Registration Options	Register	Push Registration
	Get App	Get Authenticator App
	Skip	Success
	Opt-out	Opt-out Multi-Factor Authentication
Recovery Code Collector Decision	True	Success
Recovery Code Collector Decision	False	Retry Limit Decision
Push Registration	Success	Recovery Code Display Node
	Failure	Failure
	Time Out	MFA Registration Options
Get Authenticator App	→	MFA Registration Options
Opt-out Multi-Factor Authentication	→	Success
Retry Limit Decision	Retry	Recovery Code Collector Decision
Retry Limit Decision	Reject	Failure
Recovery Code Display Node	→	Push Sender

After verifying the user’s credentials, evaluation continues to the Device Profile Collector node to collect the device’s location and then proceeds to the Push Sender node.

If the user has a registered device:

The Push Sender node sends a push notification to their registered device.
The Push Wait node pauses authentication for five seconds. During this time, the user can respond to the push notification on their device using the ForgeRock Authenticator app.

If the user exits the Push Wait node, they’re directed to the Recovery Code Collector Decision node, where they can enter a recovery code to authenticate.

Configure the Exit Message property in the Push Wait node with a message, such as Lost phone? Use a recovery code for situations like this.

A Retry Limit Decision node allows three attempts to enter a recovery code before failing the authentication.
The Push Result Verifier node verifies the user’s response:
- If the user responds positively, they’re authenticated successfully and logged in.
- If the user responds negatively, authentication fails.
- If the push notification expires, the Push Sender node sends a new push notification.

  Use a Retry Limit Decision node to constrain the number of times a new code is sent.
- If the user hasn’t yet responded, the flow loops back a step and the Push Wait node pauses authentication for another 5 seconds.

If the user doesn’t have a registered device:

The MFA Registration Options node presents the user with the following options:

Register Device

The flow continues to the Push Registration node, which displays a QR code for the user to scan with their authenticator app.

Get the App

Displayed only if the node is configured to display Get Authenticator App. The flow continues to the Get Authenticator App node, which displays links to download the authenticator app.

Skip this step

Displayed only if the node is configured to allow users to skip registration. In this example, skipping is linked to the Success outcome. However, you could provide an alternative authentication flow using an Inner Tree Evaluator node for example.

Opt-out

Displayed only if the node is configured to allow users to skip registration. Evaluation continues to the Opt-out Multi-Factor Authentication node, which updates the user’s profile to skip MFA with push in the future. In this example, after updating the profile, the flow continues to the Success outcome.
The user registers the device with the Push Registration node.

After registration, the Recovery Code Display node displays the recovery codes to the user and the flow returns to the Push Sender node to continue push authentication.

To manage push devices, the user must log in using either the device or a recovery code.

Find more information in the MFA documentation for:
