Authentication nodes

Page node

The Page node lets you combine multiple nodes that request input onto a single page for display to the user. For example, you can use it to create a single login page that requests a username and password.

The Page node can only include nodes that use callbacks to request input.

To use it, drag and drop compatible nodes onto the Page node in the journey editor.

When designing a journey that includes a Page node, consider the following points:

  • A Page node must contain at least one node.

  • Page nodes can’t be nested inside each other. Similarly, you can’t include an Inner Tree Evaluator node in a Page node.

  • Page nodes are designed to group nodes together that require user input. Non-interactive nodes, such as the Data Store Decision node or Push Sender node, should be placed outside of Page nodes.

  • Scripted Decision nodes can be included in Page nodes but only if they handle callbacks.

    Scripts that use the Action class to set outcomes (using the goTo method), or set messages (using fields such as lockoutMessage or errorMessage), aren’t supported within a Page node.

  • Only the final node can have multiple outcomes. All preceding nodes must have a single outcome path.

  • AM only v2.0 Page nodes: A Page node can contain one or more standalone nodes after the final multiple outcome node. Standalone nodes are self-contained and are processed separately to the other nodes in the Page node.

    Which nodes are standalone nodes?

    The following nodes are standalone nodes:

Example

Example 1: Simple login journey

The following example uses a Page node containing a Platform Username node, Platform Password node, and Choice Collector node:

Example journey showing Page node use

The flow prompts the user for all input on a single page:

User’s view of an example journey containing a Page node

Example 2: Login journey with multiple standalone nodes

AM only

The following example journey uses a Page node containing a Platform Username node, Platform Password node, Select Identity Provider node, and a WebAuthn Authentication node:

Journey with WebAuthn conditional UI and social authentication

The v2.0 Page node provides the user with different authentication options on the same page.

The Page node contains the following nodes:

  • Platform Username node. This node uses the following configuration to provide users with relevant autofill suggestions, including passkeys if they’re available:

    Autocomplete Values

    username
    webauthn

    The autocomplete values must be in this order.

  • Platform Password node

  • Select Identity Provider node. This node is configured to include local authentication.

  • WebAuthn Authentication node. This node is v2.0 and uses the following configuration to provide the WebAuthn conditional UI and Sign in with passkey button:

    Username from device

    Enabled

    Mediation

    CONDITIONAL

    Authentication Button

    Enabled

The standalone nodes must be added after the non-standalone nodes.

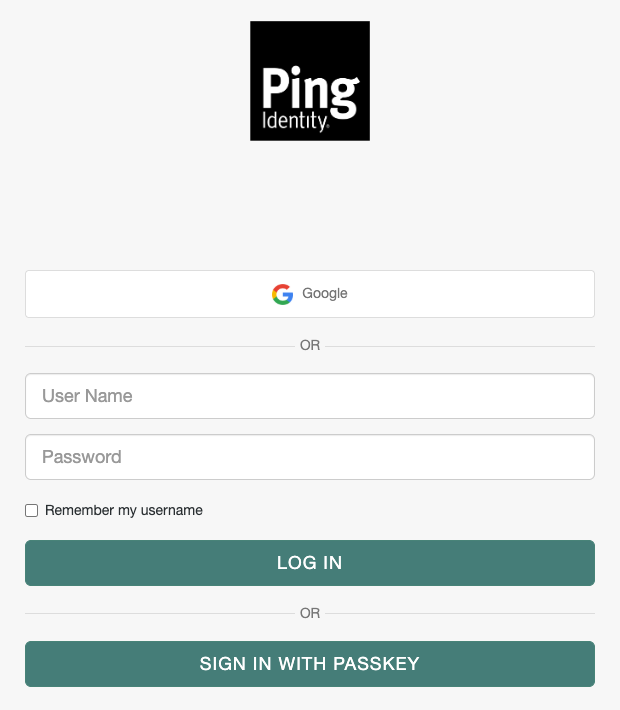

This Page node configuration presents a Sign in page to the user similar to the following:

Example Sign in page with passkey and social authentication options

  • If the user chooses Google in this example, the Social Provider Handler node routes the user to Google to authenticate. If authentication is successful, the user follows the Account exists path. Otherwise, they can try a different authentication method.

  • If the user clicks in the User Name field, they are shown any relevant username and passkey autofill suggestions.

    • If they select a passkey and authenticate successfully, they follow the Success path.

    • If they enter their username and password (local authentication), they follow the Outcome path to the Data Store Decision node. This node validates their credentials and authenticates the user if they’re valid.

  • If they click the Sign in with passkey button, they can select a saved passkey to authenticate with. If authentication is successful, they follow the Success path.

Availability

Product Available?

PingOne Advanced Identity Cloud

Yes

PingAM (self-managed)

Yes

Ping Identity Platform (self-managed)

Yes

Inputs

The inputs are determined by the collective inputs of the contained nodes.

Dependencies

This node has no dependencies.

Configuration

Property Usage Availability

Page Header

Optional. A localized title for the Page node and the nodes contained within it. Use this when components of an authentication journey need a title. For example, dividing a registration flow into labeled sections.

All node versions

Page Description

Optional. A localized description for the Page node and the nodes contained within it. Use this when you need additional descriptive text in an authentication journey.

You can use HTML code to format the description.

All node versions

Stage

Optional. A stage name to pass to the client to aid in rendering.

You can’t configure a Stage for this node if you configure a Page Footer, Theme or Submit Button Text. These properties overwrite the value of the Stage property.

All node versions

Submit Button Text

Optional. Use the Key and Value fields to set the text of the Submit button.

All node versions

Page Footer

Optional. A localized footer for the page node and the nodes contained within it. Use this when you need additional descriptive text in an authentication journey.

You can use HTML code to format the description.

All node versions

Theme

Optional. If using hosted pages, specify a theme to override this journey’s UI theme.

All node versions

This node’s optional properties are passed in the response, but a self-hosted or custom UI must support these properties to make them visible to the end user.

Outputs

The outputs are determined by the collective outputs of the contained nodes.

Callbacks

This node doesn’t send any callbacks.

Outcomes

The outcomes depend on whether the Page node contains standalone nodes. Standalone nodes can only be included from v2.0 onwards.

Without standalone nodes

The outcomes are determined by the final node in the Page node.

With standalone nodes AM only

The available outcomes include the following:

  • All outcomes from the standalone nodes.

  • The outcomes determined by the last node prior to the standalone nodes:

    • If this node has a single outcome path, a single outcome is available. This outcome is typically called Outcome.

    • If this node has multiple outcome paths, they’re all available.

Errors

This node can log the following error messages:

Message Notes

Failed to collect inputs of contained node: <node-name>

The <node-name> could not retrieve required properties from the shared node state

Failed to collect outputs of contained node: <node-name>

The <node-name> could not retrieve required properties to include in the shared node state

Could not find the identity based on the information available on context

Failed to find the account profile with this username in this realm

An error occurred when trying to lock out the user account

Failed to update the account status; applies when locking and unlocking the account

This node can throw exceptions with the following messages during operation:

Message Notes

This page has no nodes in it, so cannot proceed

A Page node must contain at least one other node

No outcome and only metadata callbacks found

Failed to get to an outcome while processing the contained nodes

Node properties cannot be fetched

Failed to access the properties of a contained node

This node can throw exceptions with the following messages when saving the journey:

Message Notes

Illegal child node type: <node-type>

A Page node can’t contain a <node-type>

Node does not have any outcomes: <node-type>

The contained nodes must have at least a single outcome path

Only the last node in a page can have more than one outcome

Consider rearranging the contained nodes

Node does not exist: <node-id>

Use the journey editor to fix the problem

Could not load child node: <node>

Use the journey editor to fix the problem

Could not obtain outcomes for node: <node>

Use the journey editor to fix the problem

Changelog

Version Changes

2.0 AM only

Added support for standalone nodes within a Page node. Standalone nodes are self-contained and can be included after the final multiple outcome node.
